RF Coaxial Adapters

N Female to BNC Female Adapter, 4 Hole Flange

PN: A-NF-BNCF-097

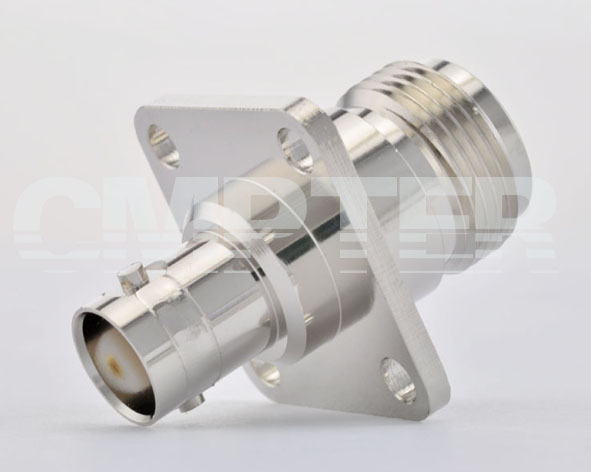

A-NF-BNCF-097-001

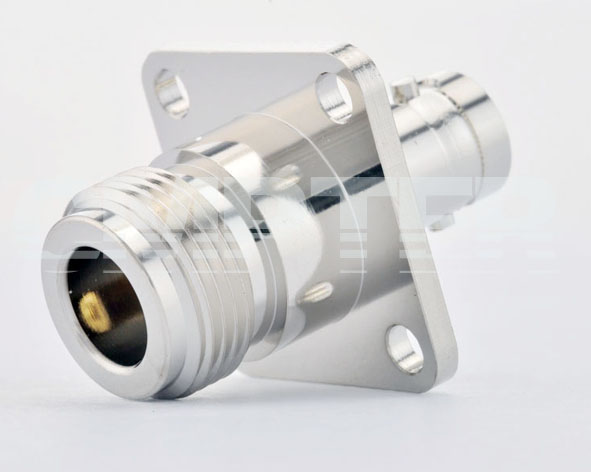

A-NF-BNCF-097-002
PRODUCT OVERVIEW
Interface Type: N to BNC
Gender: N female to BNC female, 4 Hole Flange
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 35g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
