RF Coaxial Adapters

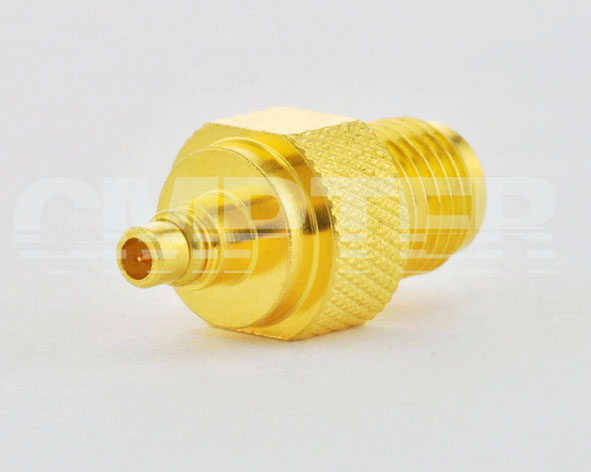

SMA Female to MMCX Male Adapter

PN: A-SMAF-MMCXM-053
A-053-001
PRODUCT OVERVIEW
Interface Type: SMA to MMCX
Gender: SMA female to MMCX male
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 3.5g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Copper beryllium alloy Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
