RF Coaxial Adapters

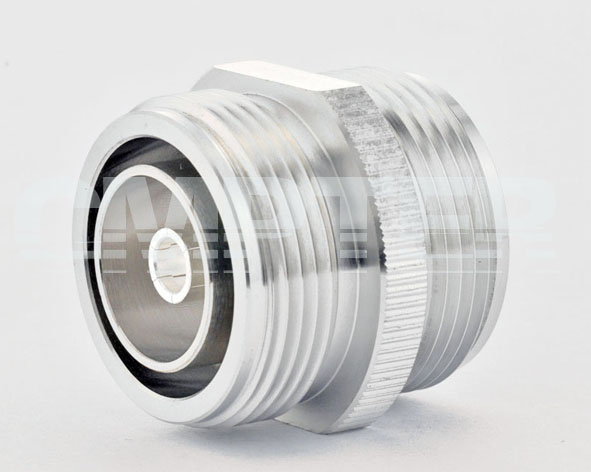

7/16 Female to 7/16 Female Adapter

PN: A-716F-716F-039
A-039-001
PRODUCT OVERVIEW
Interface Type: 7/16
Gender: 7/16 female to 7/16 female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 137g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold plating (Nickel underplated)
    Body: Brass Albaloy-plated
    Insulator: PTFE
