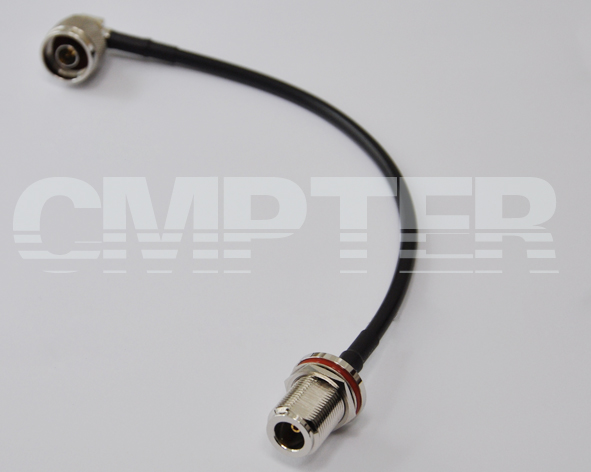

N Right Angle Male to N Waterproof Bulkhead Female RG223 Cable Assembly, 240mm
PN: CA223-NRAM-NFBW-240mm-411
PRODUCT OVERVIEW
Series: |
N Right Angle Male to N bullkhead Female for RG316 cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥1000 V |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
120g |
Durability (Matings): |
N right angle male >500 |
N bulkhead waterproof female >500 |
|
|
Material Data |
Connector 1: N Waterproof Bulkhead Female Crimp for RG142/RG223 Cable [50-02-1B21-087] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Insulator: |
PTFE |
|
|
Connector 2: N Right Angle Male Crimp for RG142/RG223 Cable [50-13-1M21-098] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Insulator: |
PTFE |
|
