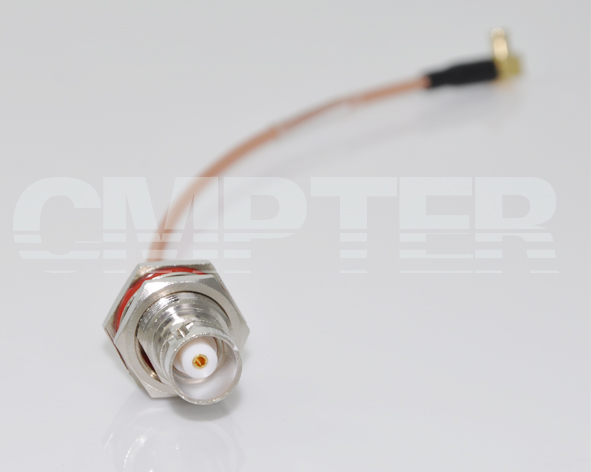

BNC Waterproof Bulkhead Female to MCX Right Angle Male RG316 Cable Assembly, Cab
PN: CA316-BNCFBW-MCXRAM-15cm-534
PRODUCT OVERVIEW
Series: |
BNC bulkhead Female to MCX Right Angle Male for RG316 cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥250 V |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
21g |
Durability (Matings): |
BNC Bulkhead Female >500 |
MCX Right Angle Male >500 |
|
|
Material Data |
Connector 1: BNC Straight Waterproof Bulkhead Female Crimp for LMR100/RG174/RG316 Cable
[P/N: 10-02-1D00-058] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Insulator: |
PTFE |
|
Connector 2: MCX Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-005] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
