RF Cable Assembly

SMA Right Angle Male to SMA Waterproof Bulkhead Female RG316D Cable Assembly, 30

PN: CA316D-SMARAM-SMAFBW-30cm-696

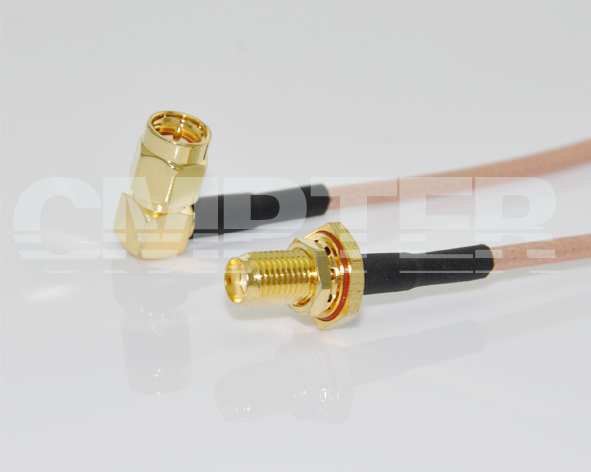

CA316D-SMARAM-SMAFBW-30cm-696-02
PRODUCT OVERVIEW
Series: SMA Right Angle Male to SMA Bulkhead Female for RG316D cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥335 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 18g
    Durability (Matings): SMA Right Angle Male >500
    SMA Bulkhead Female >500

    Material Data
    Connector 1: SMA Right Angle Male Crimp for RG316D Cable [P/N: 60-13-1M04-151]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    Coulping Nut: Brass Gold-plated (Nickel underplated)
    Insulator: PTFE

    Connector 2: SMA Straight Waterproof Bulkhead Female Crimp for RG316D Cable [P/N: 60-02-1B04-193]
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Brass  Gold-plated (Nickel underplated)
    Fastening Nut: Brass  Gold-plated (Nickel underplated)
    Insulator: PTFE
