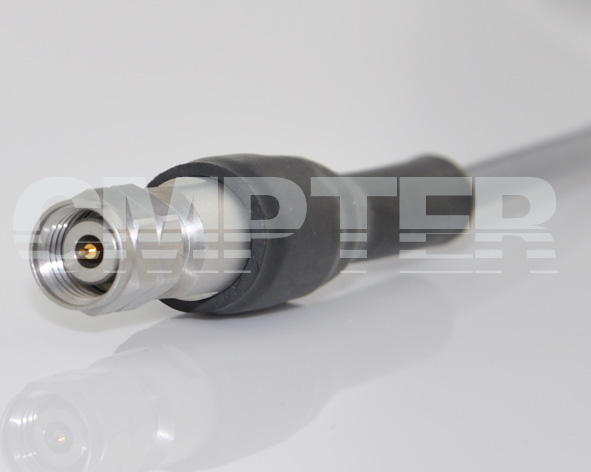

2.4mm Male to 2.4mm Male Gore CXN3507 Test Cable Assembly, 1 Meter

PN: CA3507-2.4M-2.4M-1M-1310
CA3507-2
PRODUCT OVERVIEW
Series: 2.4mm male to 2.4mm Male for Gore3507 cable, DC to 40GHz, Test cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 40 GHz
VSWR ≤1.25
Temperature Range: -55 °C ~ +125 °C
Weight: 75g
Durability (Matings): 2.4mm male >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
