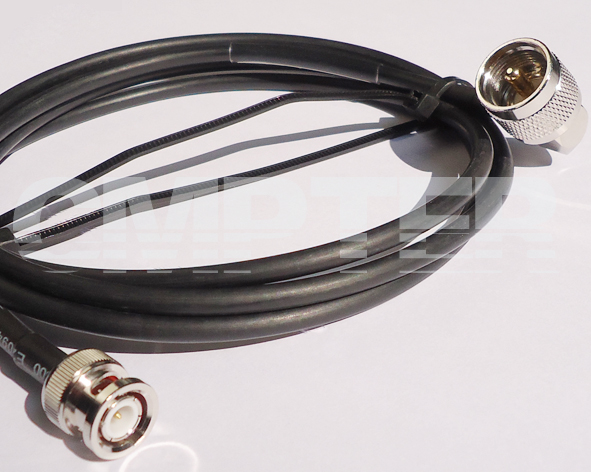

BNC Male to UHF Right Angle Male RG58 Cable Assembly, 1.5 Meters
PN: CA58-BNCM-UHFRAM-1.5M-406
PRODUCT OVERVIEW
| Series: |
BNC Male to UHF Right Angle Male for RG58 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 500 MHz |
| Withstanding Voltage: |
≥750 V |
| Temperature Range: |
-20 °C ~ +80 °C |
| Weight: |
104g |
| Durability (Matings): |
BNC Male >500 |
| UHF Right Angle Male >500 |
| |
|
| Material Data |
| Connector 1: BNC Straight Male Crimp for LMR195/RG58 Cable [P/N: 10-03-1M18-003] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Coupling Nut: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
| Connector 2: UHF Right Angle Male Crimp for LMR195/RG58 Cable [P/N: 90-13-1M18-002] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Fastening Nut: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
