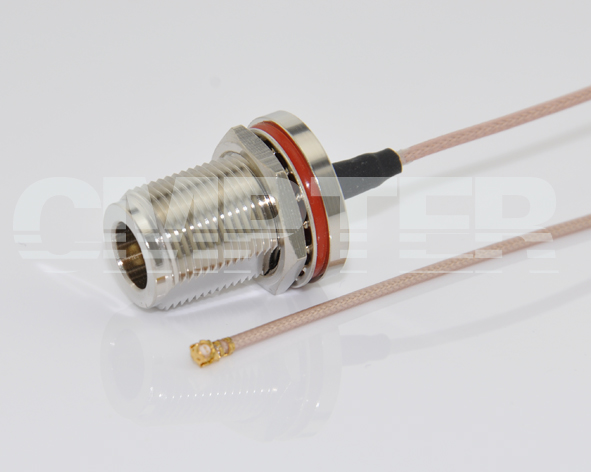

N Waterproof Bulkhead Female to UFL/MHF Right Angle Plug RG178 Cable Assembly
PN: CA178-NFBW-UFL-30cm-360
PRODUCT OVERVIEW
| Series: |
N bulkhead Female to U.FL for RG178 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-40 °C ~ +90 °C |
| Weight: |
39g |
| Durability (Matings): |
N bulkhead Female >500 |
| U.FL connector >30 |
| |
|
| Material Data |
| Connector 1: N Straight Waterproof Bulkhead Female Solder for RG178 Cable [P/N: 50-02-1B12-055] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
| Connector 2: U.FL/MHF Right Angle Plug |
