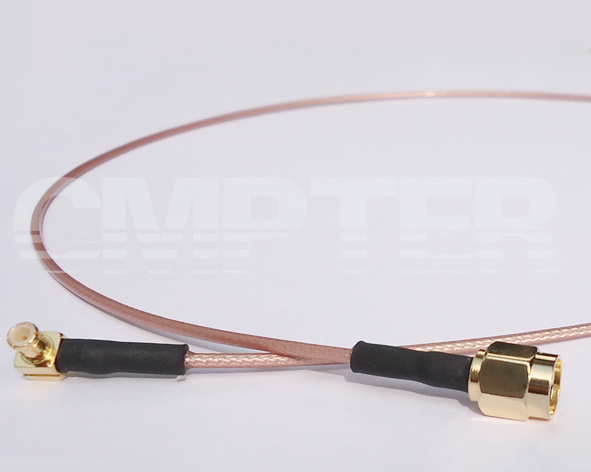

SMA Male to MCX Right Angle Male RG178 Cable Assembly, 60cm
PN: CA178-SMAM-MCXRAM-60cm-308
PRODUCT OVERVIEW
| Series: |
SMA Male to MCX Right Angle male for RG178 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +155 °C |
| Weight: |
12g |
| Durability (Matings): |
SMA Male >500 |
| MCX Right Angle Male >500 |
| |
|
| Material Data |
| Connector 1: SMA Straight Male Crimp for RG178 Cable [P/N: 60-03-1M12-008] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: MCX Right Angle Male Crimp for RG178 Cable [P/N: 30-13-1M12-006] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
