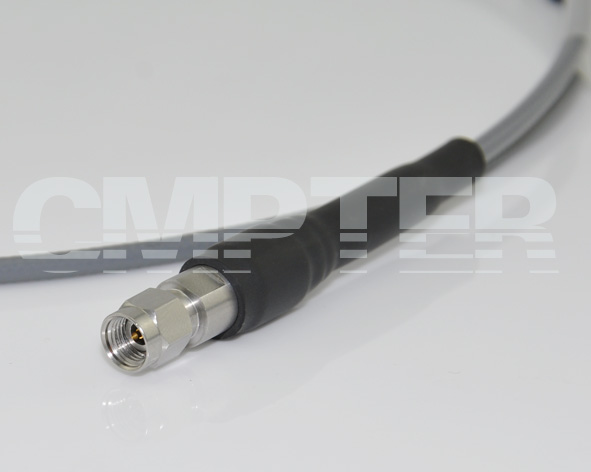

2.92mm Male to 2.92mm Male Gore3507 Test Cable assembly, 1 meter
PN: CA3507-2.92M-2.92M-1M-272
PRODUCT OVERVIEW
Series: |
2.92mm male to 2.92mm Male for Gore3507 cable, DC to 40GHz, Test cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 40 GHz |
VSWR |
≤1.25 |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
75g |
Durability (Matings): |
2.92mm male >500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
