RF Cable Assembly

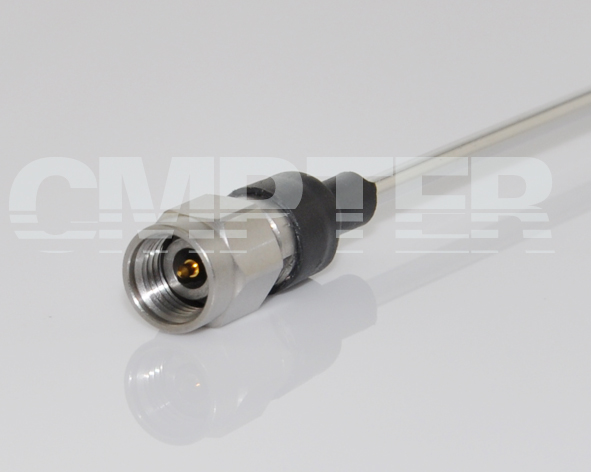

2.92mm Male to 2.92mm Male CTFD-086 Cable, 88mm

PN: CA086TD-2.92M-2.92M-88mm-731
CA086TD-2
PRODUCT OVERVIEW
Series: 2.92mm Male to 2.92mm Male for .086 cable, DC to 40GHz
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 40 GHz
    VSWR ≤1.25
    Temperature Range: -55 °C ~ +125 °C
    Weight: 18g
    Durability (Matings): 2.92mm male >500

    Material Data
    Connectors:  2.92mm Straight Male Connectors Solder for RG405/.086 Cable [P/N: 96-03-2M11-044]
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
