2.92mm Male to 2.92mm Right Angle Male .086 Hand-Formable Cable Assembly, 12cm
PN: CA086HF-2.92M-2.92RAM-12cm-1767
PRODUCT OVERVIEW
Series: |
2.92mm Male to 2.92mm Right Angle Male for .086 cable, DC to 40GHz |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 40 GHz |
VSWR |
≤1.35 |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
15g |
Durability (Matings): |
2.92mm male >500 |
2.92mm right angle male >500 |
|
|
Material Data |

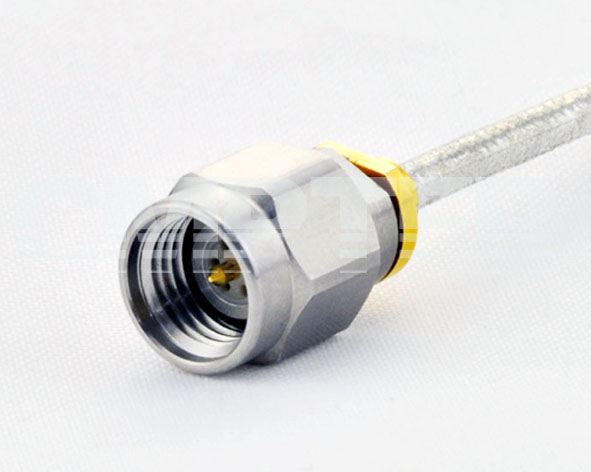

Connector1 : 2.92mm Straight Male Solder for RG405/.086 Cable [P/N: 96-03-2M11-055] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
|

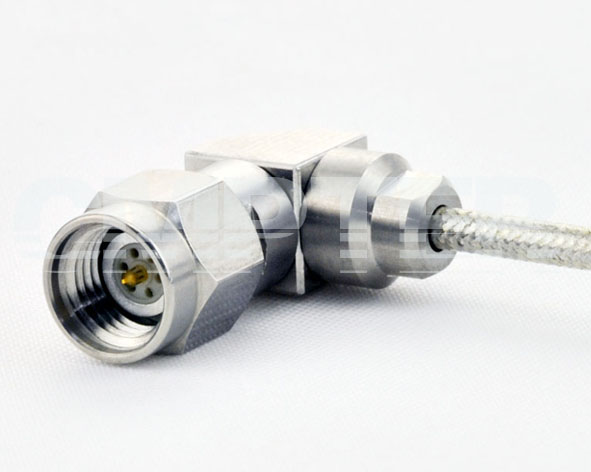

Connector2 : 2.92mm Right Angle Male Solder for RG405/ .086 Cable [P/N: 96-13-2M11-060] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
