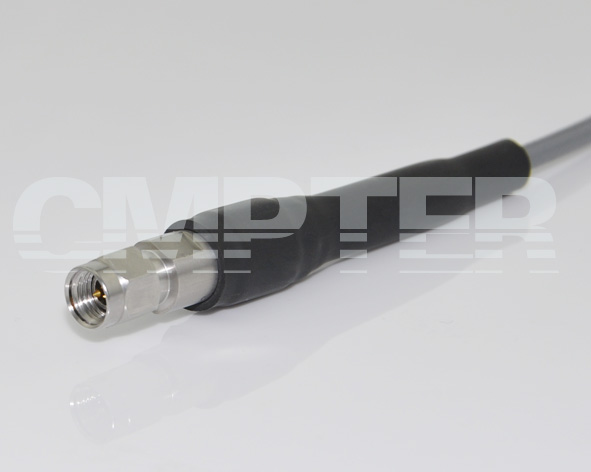

3.5mm Male to 3.5mm Male Gore CXN3507 Test Cable Assembly, 50cm
PN: CA3507-3.5M-3.5M-50cm-515
PRODUCT OVERVIEW
Series: |
3.5mm male to 3.5mm Male for Gore3507 cable, DC to 33GHz, Test cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 33 GHz |
VSWR |
≤1.25 |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
47g |
Durability (Matings): |
3.5mm male >500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
