Launch Pins [LP-XXX]

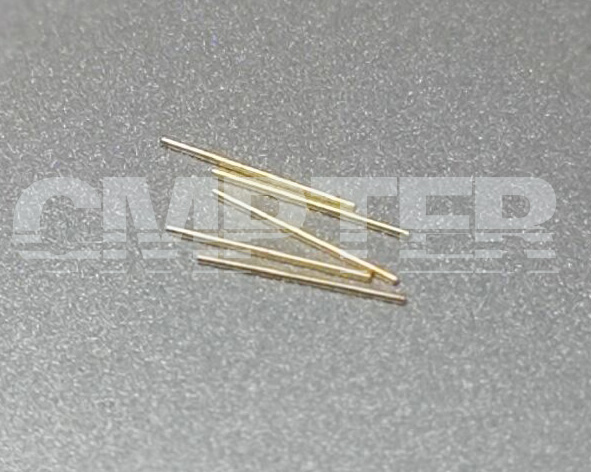

Launch Pin
LP-002
PRODUCT OVERVIEW
Launch Pin applly in accept pin connector type, 1.27μm gold plated

DOWNLOADS
PRODUCT SPECIFICATIONS
TECHNICAL DATA:

Material:  Beryllium Copper Alloy
Finish:  According to MIL-G-45204, Type 3,Grade A, Class 1
             (50 micro inches min) over (100 micro inches min) electroless Ni.


P/N

D DIA.

L

LP-001

0.51 [.002]

7.5 [.295]

LP-002

0.51 [.002]

6.5 [.256]

LP-003 0.46 [.018] 7.5 [.295]
LP-004 0.46 [.018] 6.5 [.256]
LP-005 0.38 [.015] 7.5 [.295]
LP-006 0.38 [.015] 6.5 [.256]
LP-007 0.30 [.012] 7.5 [.295]
LP-008 0.30 [.012] 6.5 [.256]
