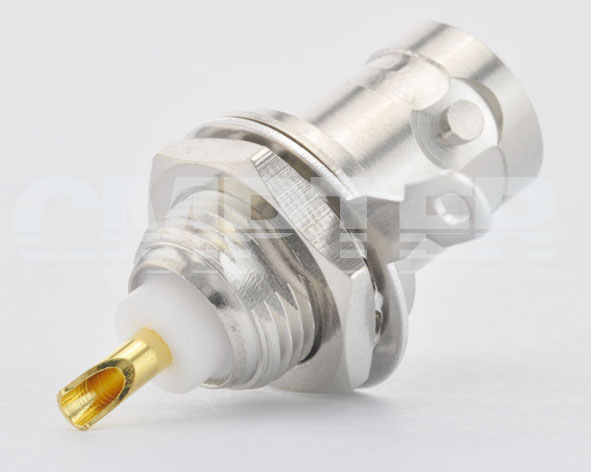

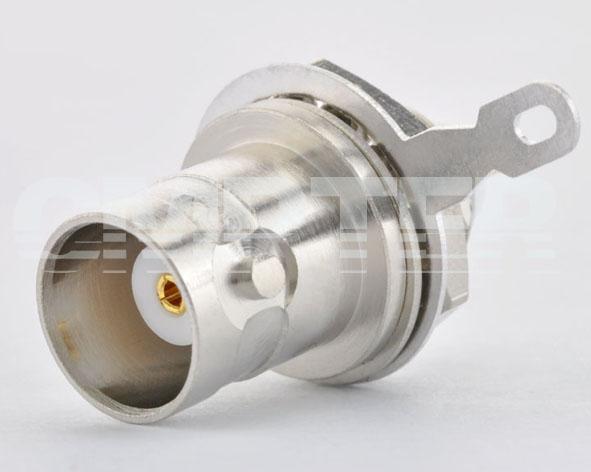

BNC Female Bulkhead Connector, Receptacle with Solder End
PRODUCT OVERVIEW
| Interface Type: |
BNC |
| Gender: |
Female |
| RoHS Certificate: |
Compliant |
| Interface Standards: |
IEC 61169-8 |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Insulation Resistance: |
≥5000MΩ |
| Withstanding Voltage |
1000V |
| Cable entry center contact |
Soldered |
| Cable entry outer contact |
Crimped |
| Temperature Range: |
-65 °C ~ +165 °C |
| Weight: |
13g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Bronze |
Gold plating (Nickel underplated) |
| Body: |
Brass |
Nickel plating |
| Insulator: |
PTFE |
|
