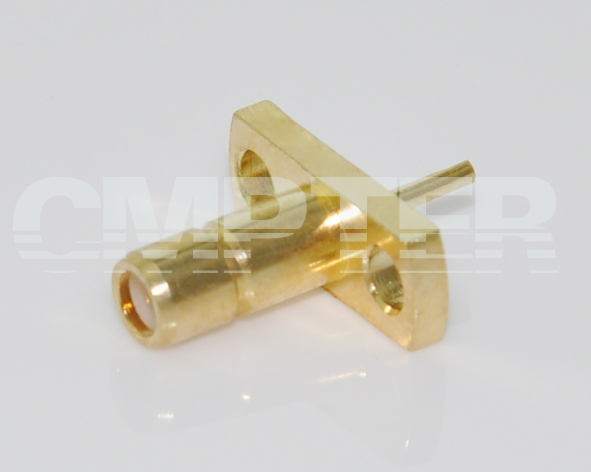

SMB Female Receptacle connector, 2 Hole Flange Mount

PN: 70-02-8E1-009
70-02-8E1-009-02
PRODUCT OVERVIEW
Interface Type: SMB
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 4 GHz
Insulation Resistance: ≥3000MΩ
Temperature Range: -55 °C ~ +165 °C
Weight: 2.4g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Insulator: PTFE
