RF coaxial connectors

SMB Female Right Angle PCB (Male Center Contact)

PN: 70-12-7M2-077

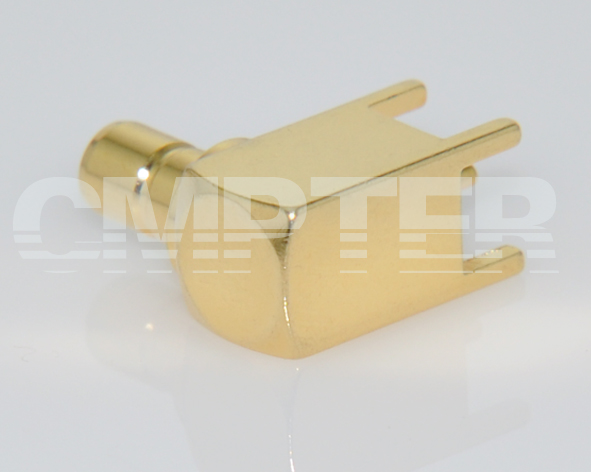

70-12-7M2-077-03

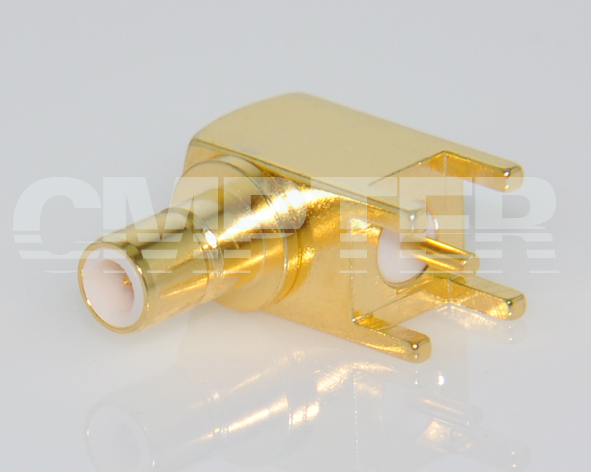

70-12-7M2-077-02
PRODUCT OVERVIEW
Interface Type: SMB
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 4 GHz
    Insulation Resistance: ≥3000MΩ
    Temperature Range: -55 °C ~ +165 °C
    Weight: 2.4g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
