PN: 61-03-2M14-009

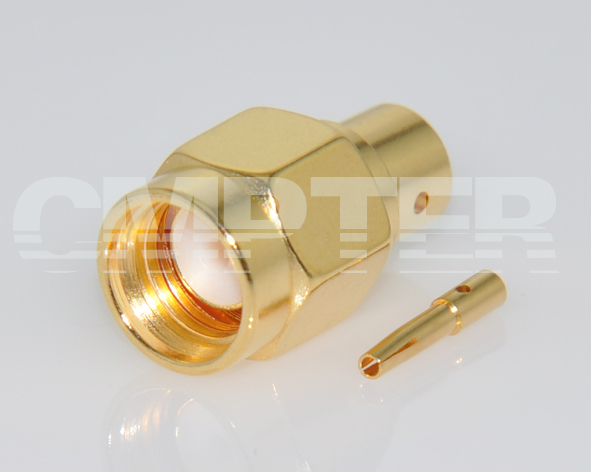

RP SMA Straight Male Solder for RG402/.141 Cable
61-03-2M14-009-02
PRODUCT OVERVIEW
Interface Type: RPSMA
Gender: Male
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Brass Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Coupling Nut: Brass Gold plating (Nickel underplated)
Insulator: PTFE
