PN: 61-02-2D35-021

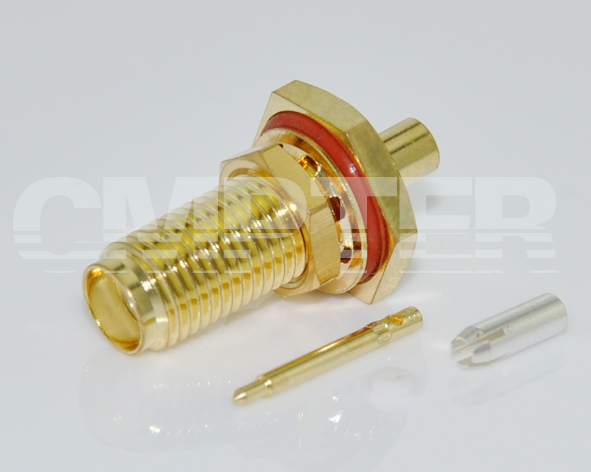

RP SMA Straight Waterproof Bulkhead Female Solder for Mini Coaxial 0.81mm Cable
61-02-2D35-021-02
PRODUCT OVERVIEW
Interface Type: RPSMA
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 3g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Barss Gold plating (Nickel underplated)
Body: Brass Gold plating (Nickel underplated)
Fastening Nut: Brass Gold plating (Nickel underplated)
Gasket: Silicone Rubber
Insulator: PTFE
