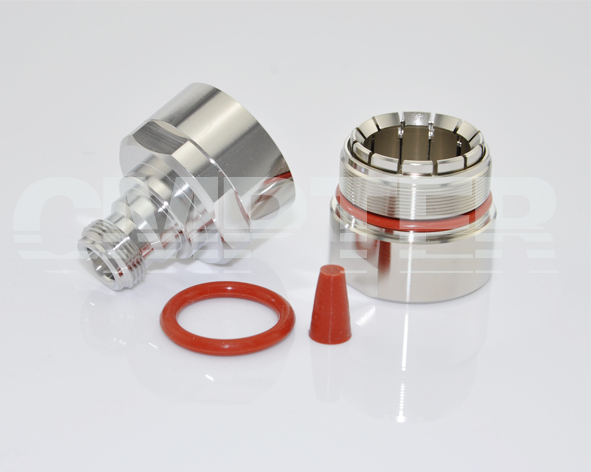

N Female Clamp 7/8" RF Cable

PN: 50-02-4M25-050
50-02-4M25-050-2
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 139g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Siliver Plating
Body: Brass Albaloy plating
Insulator: PTFE

Gasket MVQ (Silicone rubber)
