RF Coaxial Adapters

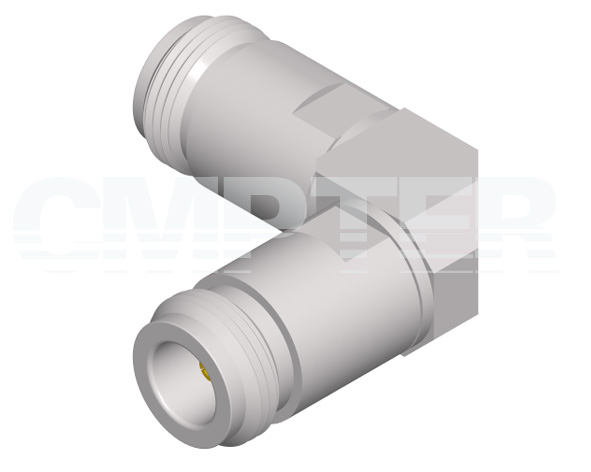

N Female to N Female Right Angle Precision Adapter

PN: PR-NF-NF-250
N female right angle
PRODUCT OVERVIEW
Interface Type: N-type
Gender: N female to N female, Right Angle
RoHS: Compliant


DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    VSWR 1.25:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 82g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
