PN: P-NF-SMAM-314

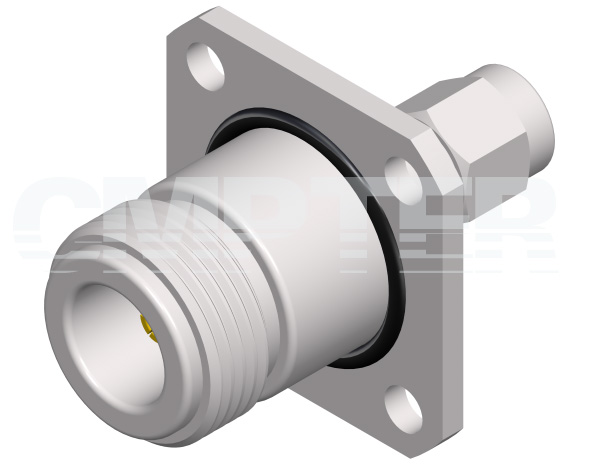

Precision Adapter, N Female to SMA Male, 4 Hole Flange
P-NF-SMAM-314-02
PRODUCT OVERVIEW
Interface Type: N-type to SMA
Gender: N female to SMA male, 4 Hole Flange
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18 GHz
VSWR 1.15:1
Temperature Range: -55 °C ~ +165 °C
Weight: 42g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
