RF Coaxial Adapters

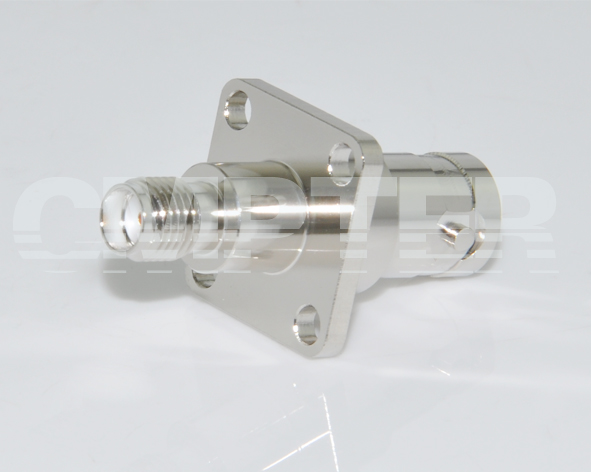

Adapter, BNC Female to SMA Female, 4 Hole Flange

PN: A-BNCF-SMAF-299
BNC Female to SMA Female, 4 Hole Flange
PRODUCT OVERVIEW
Interface Type: BNC to SMA
Gender: BNC female to SMA female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 4GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 14g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel Plated
    Insulator: PTFE
