RF Coaxial Adapters

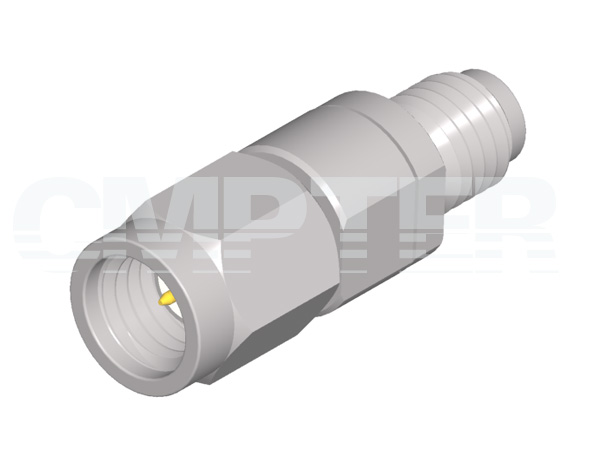

SSMA Male to SSMA Female Precision Adapter

PN: P-SSMAM-SSMAF-259
SSMA male to female
PRODUCT OVERVIEW
Interface Type: SSMA
Gender: SSMA male to SSMA female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 40 GHz
    VSWR 1.20:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 4g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
