RF Coaxial Adapters

1.0mm Female to 1.85mm Female Precision Adapter

PN: P-1.0F-1.85F-376

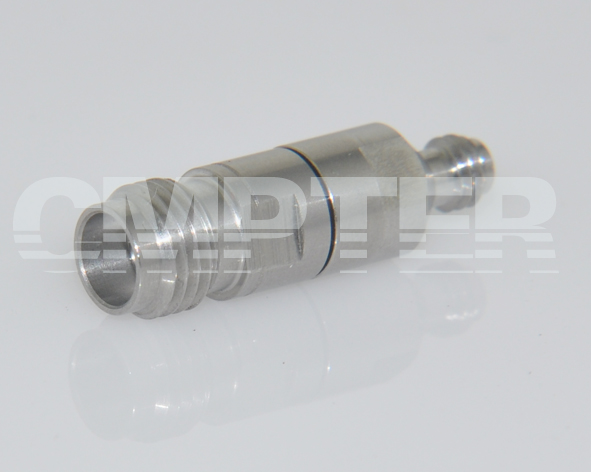

1.0mm female to 1.85mm female adapter

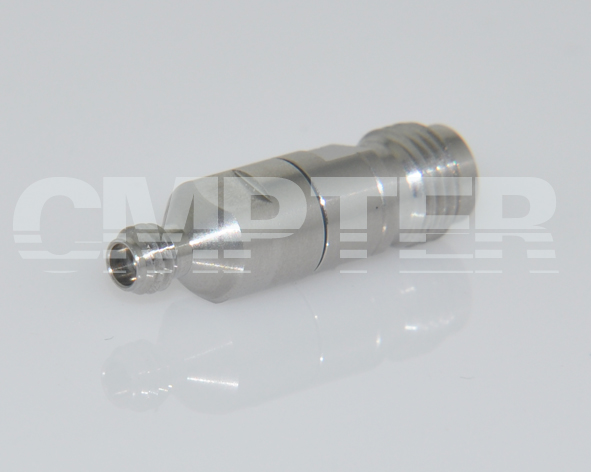

1.85mm to 1.0mm adapter
PRODUCT OVERVIEW
Interface Type: 1.0mm to 1.85mm
Gender: 1.0mm female to 1.85mm female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 67GHz
    Temperature Range: -55 °C ~ +80 °C
    Weight: 4g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body: Stainless Steel (Su303) Passivated
    Insulator: PEI
