RF Coaxial Adapters

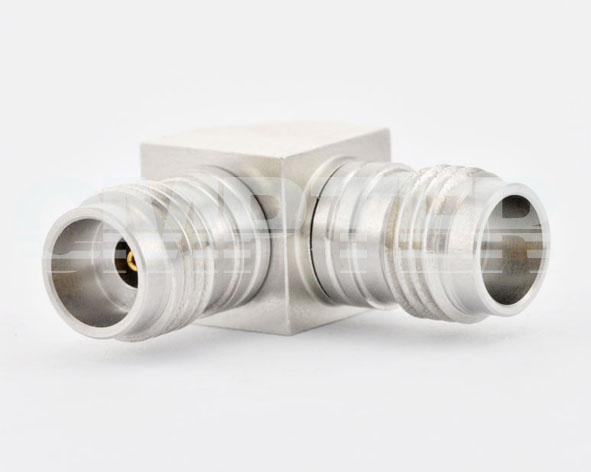

2.4mm Female to 2.4mm Female Right Angle Precision Adapter

PN: PR-2.4F-2.4F-387
PR-387-001
PRODUCT OVERVIEW
Interface Type: 2.4mm
Gender: 2.4mm female to 2.4mm female, Right angle
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • Test Rerport [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 50 GHz
    VSWR 1.30:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 7g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
