N Male to N Female Adapter

PN: A-NM-NF-091

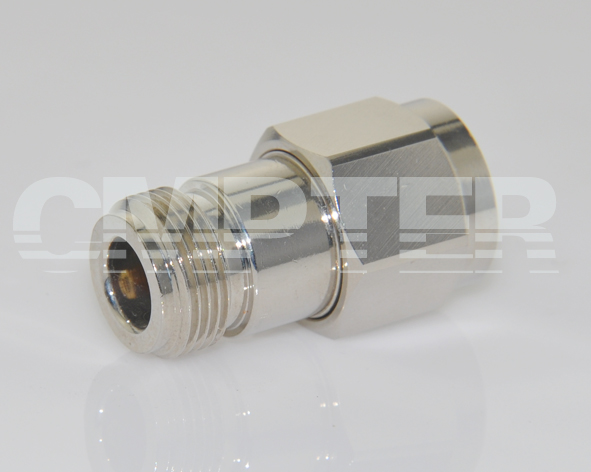

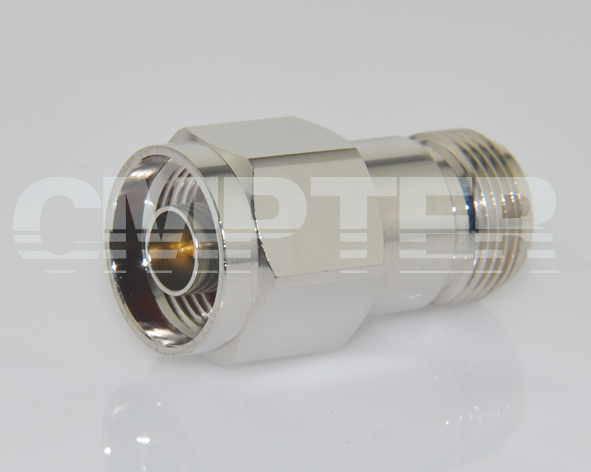

N male to female adapter
N adapter
PRODUCT OVERVIEW
Interface Type: N-Type
Gender: N male to N female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 11 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 53g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
