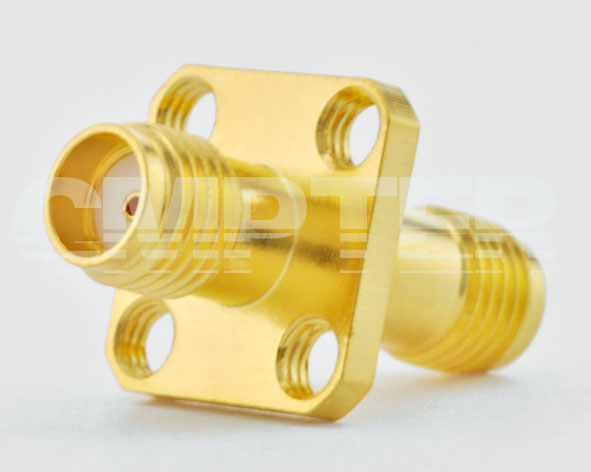

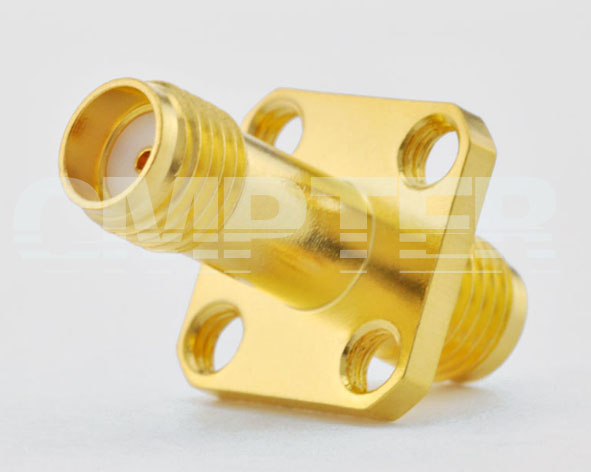

Adapter, SMA Female to SMA Female, 4 Hole Flange

PN: A-SMAF-SMAF-061
SMA 4 Hole Flange
SMA female 4 Hole Flange
PRODUCT OVERVIEW
Interface Type: SMA
Gender: SMA female to SMA female, 4 Hole Flange
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6 GHz
VSWR 1.25:1
Temperature Range: -55 °C ~ +165 °C
Weight: 7g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold-plated (Nickel underplated)
Body: Brass Gold-plated (Nickel underplated)
Insulator: PTFE
