RF Coaxial Adapters

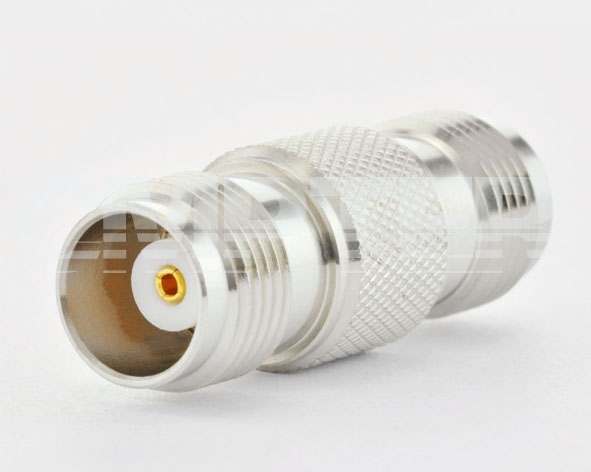

TNC Female to TNC Female RF Adapter, DC to 6GHz

PN: A-TNCF-TNCF-042
A-042-001
PRODUCT OVERVIEW
Interface Type: TNC
Gender: TNC female to TNC female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 22g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold-plated (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
