RF Coaxial Adapters

TNC Female to SMA Male Adapter

PN: A-TNCF-SMAM-065

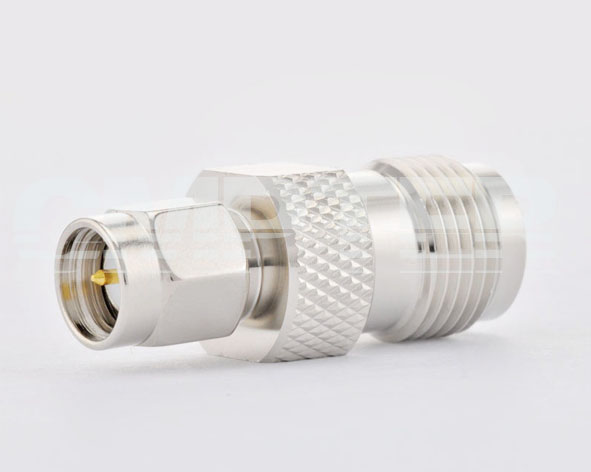

A-065-002
A-065-001
PRODUCT OVERVIEW
Interface Type: TNC
Gender: TNC female to SMA male
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 13g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
