PN: A-NF-SMAF-007

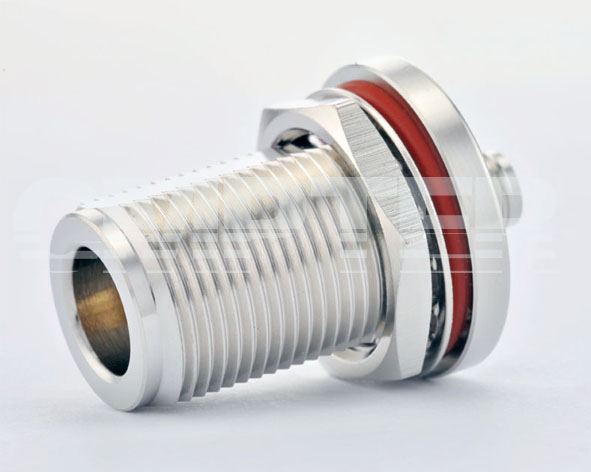

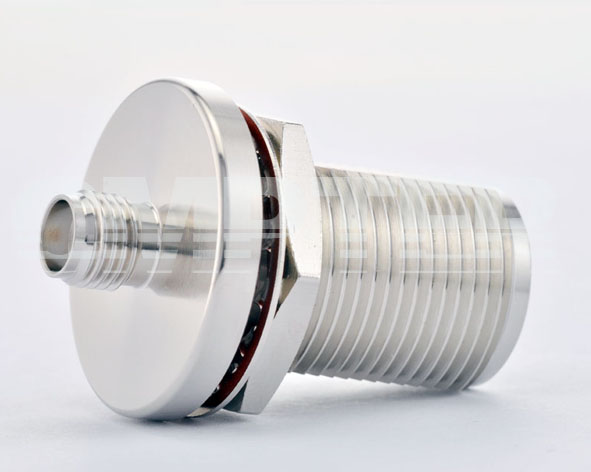

Adapter, N Waterproof Bulkhead Female to SMA Female
A-NF-SMAF-007-01
A-NF-SMAF-007-02
PRODUCT OVERVIEW
Interface Type: N to SMA
Gender: N female to SMA female, Waterproof bulkhead type
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6 GHz
Temperature Range: -65 °C ~ +165 °C
Weight: 35g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
Body: Brass Nickel-plated
Insulator: PTFE
