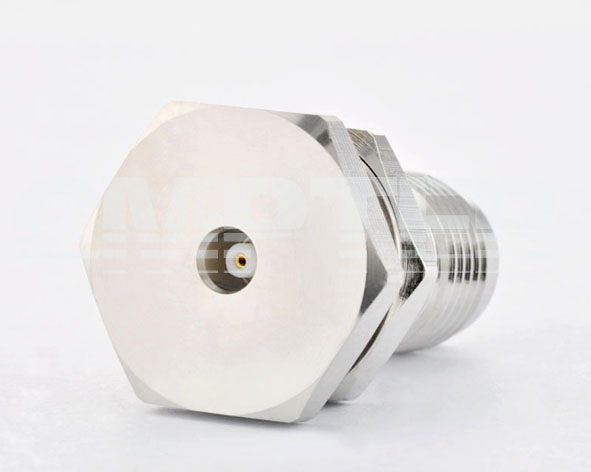

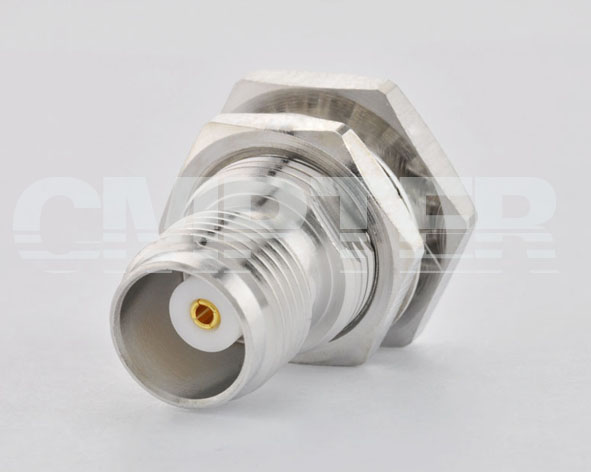

TNC Bulkhead Female to MCX Female RF Adapter

PN: A-TNCF-MCXF-356
TNC Bulkhead to MCX
TNC Bulkhead Female to MCX Female Adapter
PRODUCT OVERVIEW
Interface Type: TNC to MCX
Gender: TNC female to MCX female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 10g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
