RF Coaxial Adapters

UHF Male to BNC Male RF Adapter

PN: A-BNCM-UHFM-087

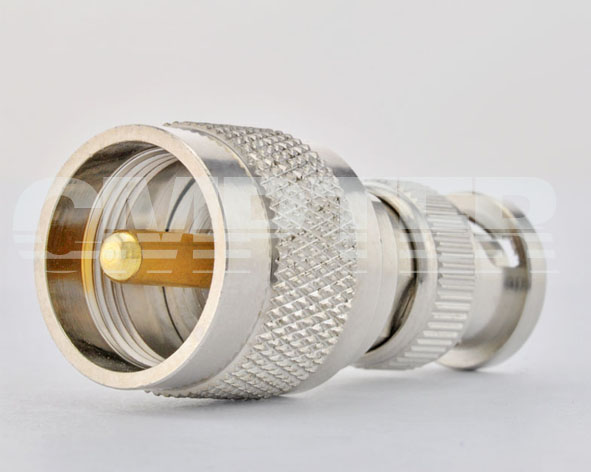

A-087-001

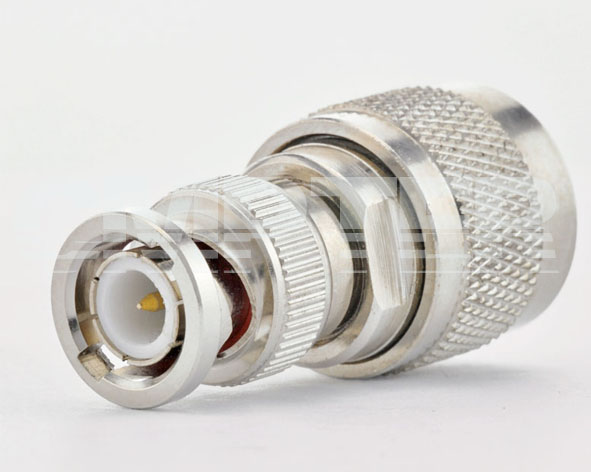

A-087-003
PRODUCT OVERVIEW
Interface Type: UHF to BNC
Gender: UHF male to BMC male
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 300 MHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 23g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Gold plating (Nickel underplated)
    Body: Brass Nickel Plated
    Insulator: PTFE
