RF Coaxial Adapters

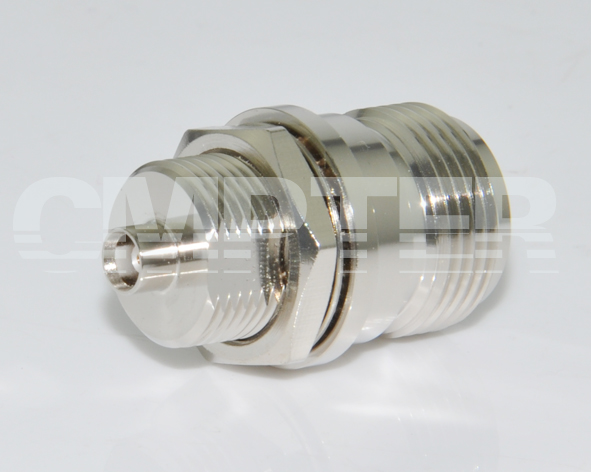

N Female to MCX Bulkhead Female Adapter

PN: A-NF-MCXF-327
A-NF-MCXF-327-02
PRODUCT OVERVIEW
Interface Type: N to MCX
Gender: N female to MCX female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 29g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
