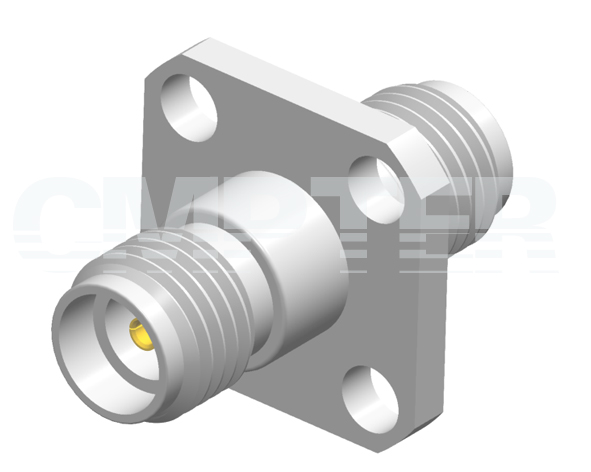

Precision Adapter, 2.92mm Female to 3.5mm Female, 4 Hole Flange

PN: P-3.5F-2.92F-131
P-3
PRODUCT OVERVIEW
Interface Type: 3.5mm to 2.92mm
Gender: 3.5mm female to 2.92mm female, 4 Hole Flange
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 33 GHz
VSWR 1.15:1
Temperature Range: -55 °C ~ +165 °C
Weight: 5g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
