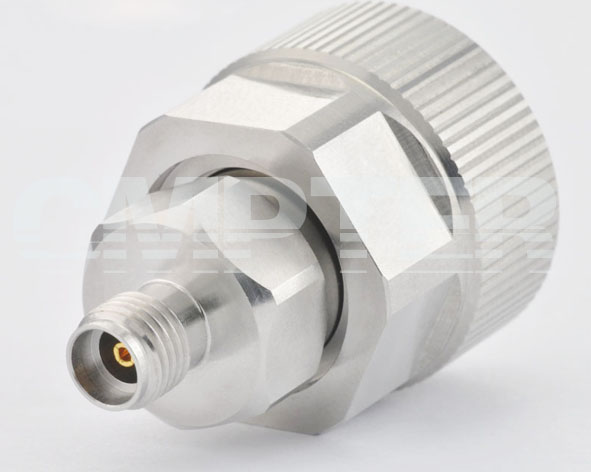

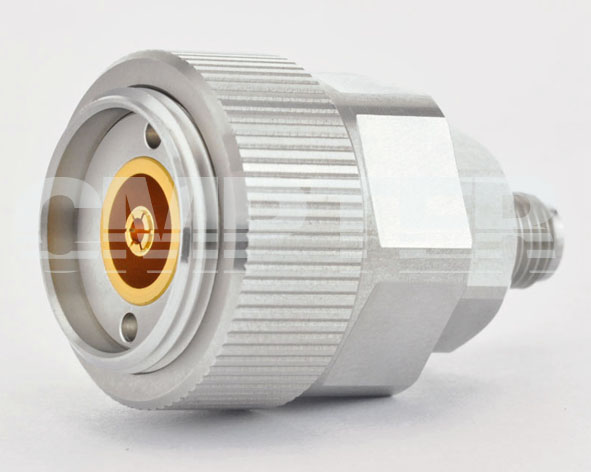

3.5mm Female to APC-7 Precision Adapter
PRODUCT OVERVIEW
Interface Type: |
3.5mm to APC7mm |
Gender: |
3.5mm female to APC7mm |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 18 GHz |
VSWR |
1.10:1 |
Temperature Range: |
-55 °C ~ +165 °C |
Weight: |
46g |
Durability (Matings): |
>500 |
|
|
Material Data |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
