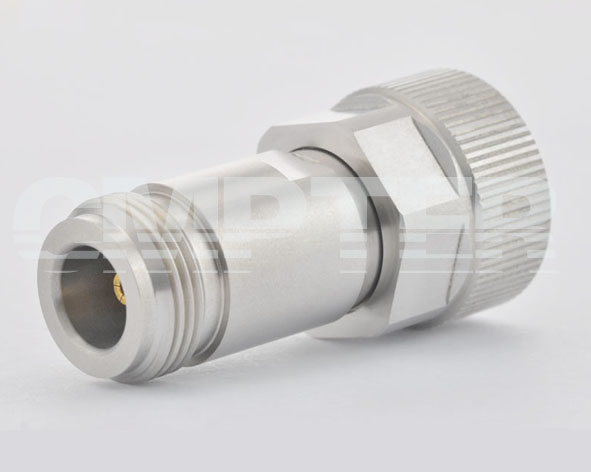

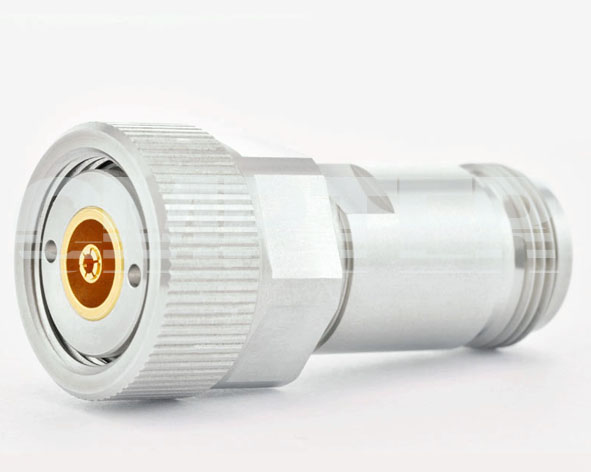

N Female to APC-7 Precision Adapter

PN: P-APC7-NF-128
A-128-001
A-128-002
PRODUCT OVERVIEW
Interface Type: N-type to APC7mm
Gender: N female to APC7mm
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 18 GHz
VSWR 1.10:1
Temperature Range: -55 °C ~ +165 °C
Weight: 71g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
