RF Coaxial Adapters

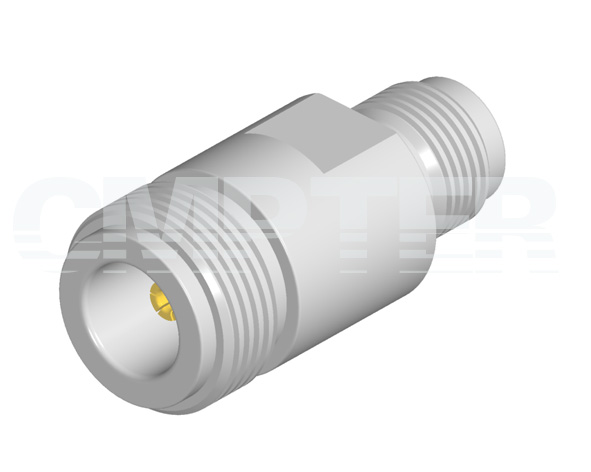

TNC Female to N Female Precision Adapter

PN: P-NF-TNCF-113
N to TNC female
PRODUCT OVERVIEW
Interface Type: N to TNC
Gender: N female to TNC female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 11 GHz
    VSWR 1.15:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 34g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
