RF Coaxial Adapters

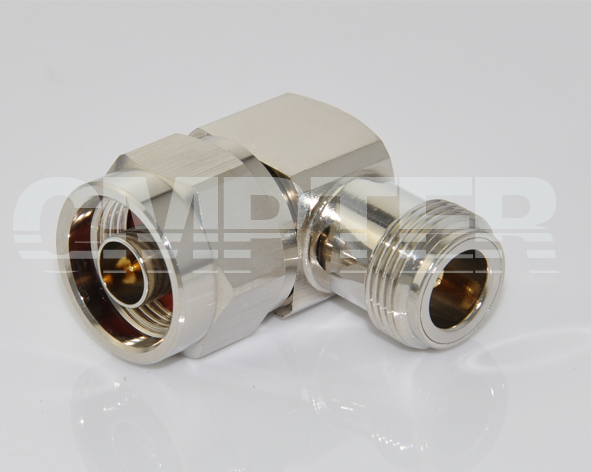

N Male to N Female Right Angle Adapter

PN: AR-NM-NF-036
AR-NM-NF-036-02
PRODUCT OVERVIEW
Interface Type: N-Type
Gender: N male to N female, Right Angle
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 70g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
