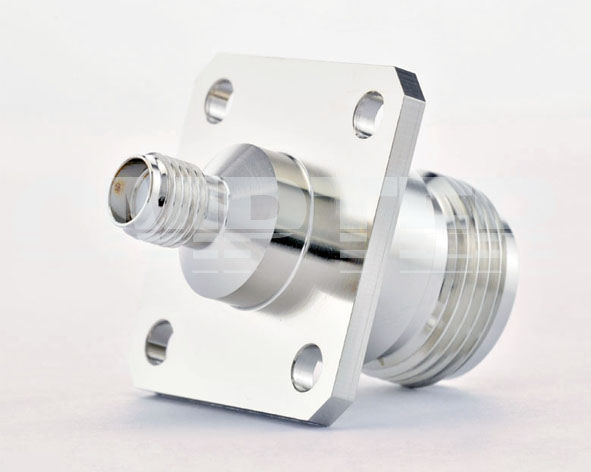

N Female to SMA Female Adapter, 4 Hole Flange
PRODUCT OVERVIEW
| Interface Type: |
N to SMA |
| Gender: |
N female to SMA female, 4 Hole Flange |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 11 GHz |
| Temperature Range: |
-65 °C ~ +165 °C |
| VSWR: |
≤1.30 |
| Insertion Loss: |
≤0.3 dB |
| Weight: |
33g |
| Durability (Matings): |
>500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold plating (Nickel underplated) |
| Body: |
Brass |
Nickel-plated |
| Insulator: |
PTFE |
|
