RF Coaxial Adapters

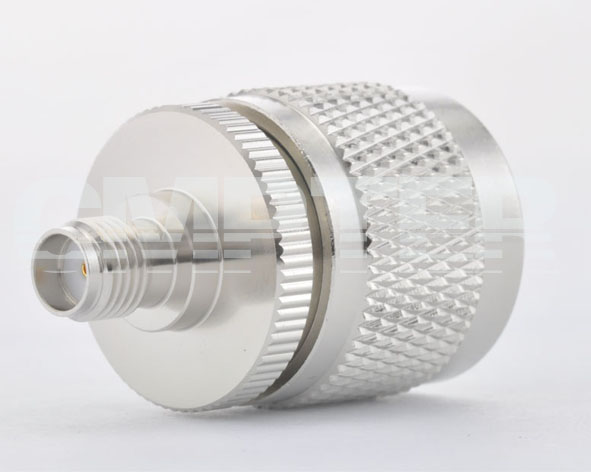

N Male to SMA Female Adapter

PN: A-NM-SMAF-003
A-003-001
PRODUCT OVERVIEW
Interface Type: N to SMA
Gender: N male to SMA female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 11 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 33g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
