BNC Female to N Male Precision Adapter

PN: P-NM-BNCF-267

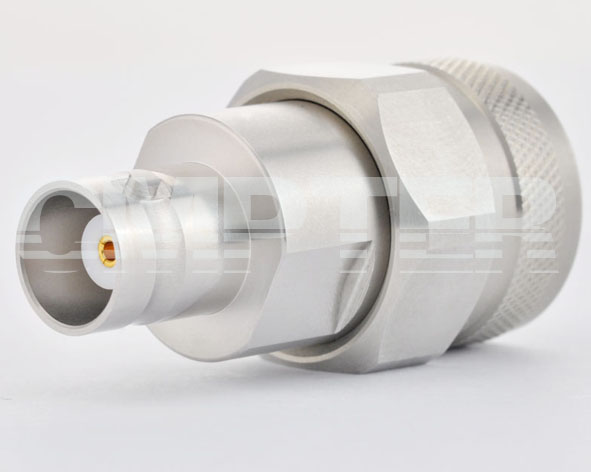

P-267-001

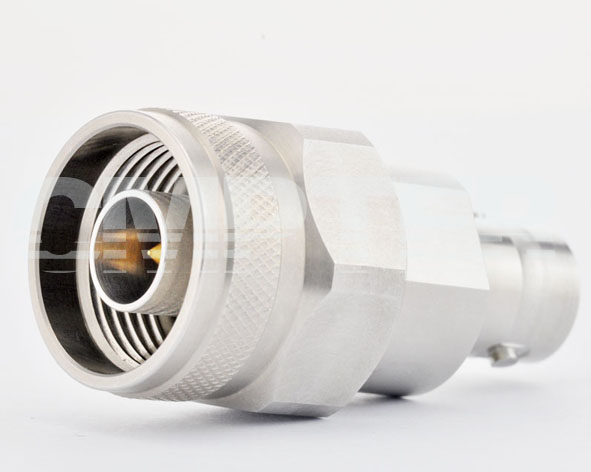

P-267-002
PRODUCT OVERVIEW
Interface Type: N to BNC
Gender: N male to BNC female
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 8 GHz
VSWR 1.15:1
Temperature Range: -55 °C ~ +165 °C
Weight: 55g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
