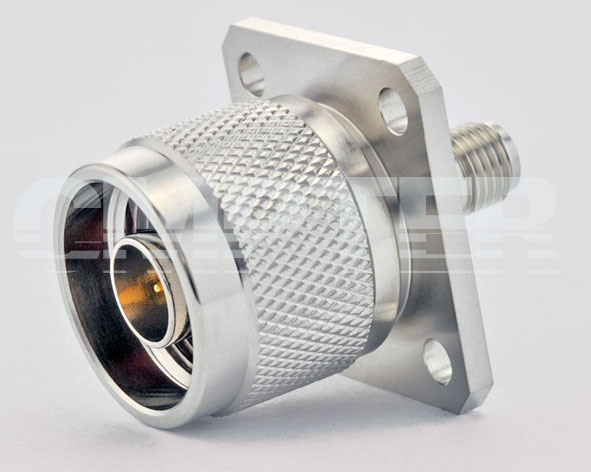

Adapter, N Male to SMA Female, 4 Hole Flange

PN: A-NM-SMAF-023
A-NM-SMAF-023-02
PRODUCT OVERVIEW
Interface Type: N to SMA
Gender: N male to SMA female, 4 Hole Flange
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 11 GHz
Temperature Range: -65 °C ~ +165 °C
VSWR: ≤1.30
Insertion Loss: ≤0.3 dB
Weight: 38g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
Body: Brass Nickel-plated
Insulator: PTFE
