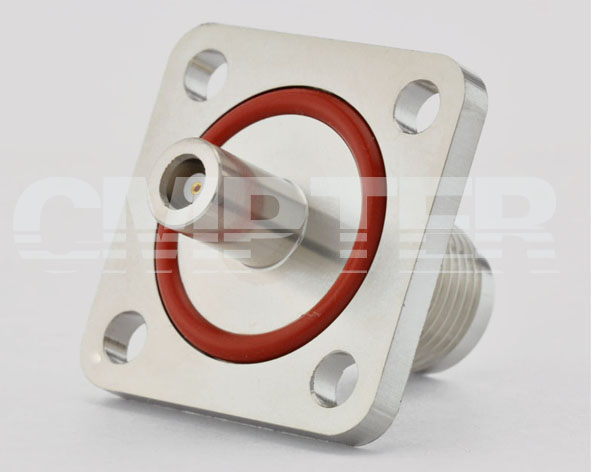

Adapter, MCX Female to TNC Waterproof Female, 4 Hole Flange

PN: A-TNCF-MCXF-342
A-TNCF-MCXF-342-02
A-TNCF-MCXF-342-03
PRODUCT OVERVIEW
Interface Type: TNC to MCX
Gender: TNC female to MCX female
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Temperature Range: -65 °C ~ +165 °C
Weight: 15g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy 0.05μm Gold-plated (Nickel underplated)
Body: Brass 3.05μm Nickel-plated
Insulator: PTFE
