RF Coaxial Adapters

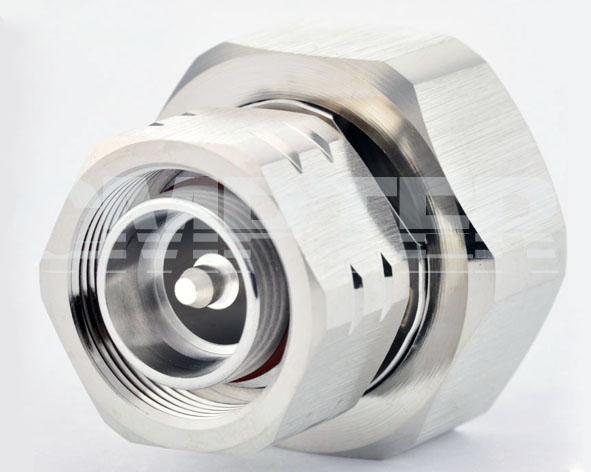

7/16 Male to 4.3/10 Male RF Adapter

PN: A-716M-4.310M-346
A-716M-4310M-346-001
PRODUCT OVERVIEW
Interface Type: 7/16 to 4.3/10
Gender: 7/16 male to 4.3/10 male
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 94g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Brass Silver plating (Nickel underplated)
    Body: Brass Albaloy-plated
    Insulator: PTFE
