RF Coaxial Adapters

TNC male to BNC Female adapter, DC to 4GHz

PN: A-BNCF-TNCM-070

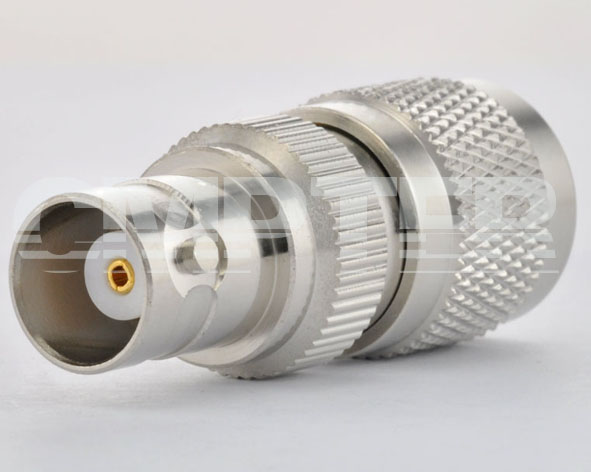

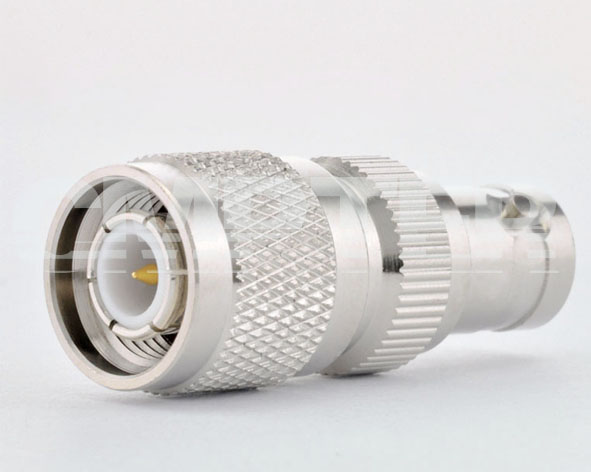

TNC male to BNC female adapter
TNC to BNC adapter
PRODUCT OVERVIEW
Interface Type: BNC to TNC
Gender: TNC male to BNC female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 4 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 25g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
