BNC Female to SMA Female adapter, 4 Hole Flange

PN: A-BNCF-SMAF-332

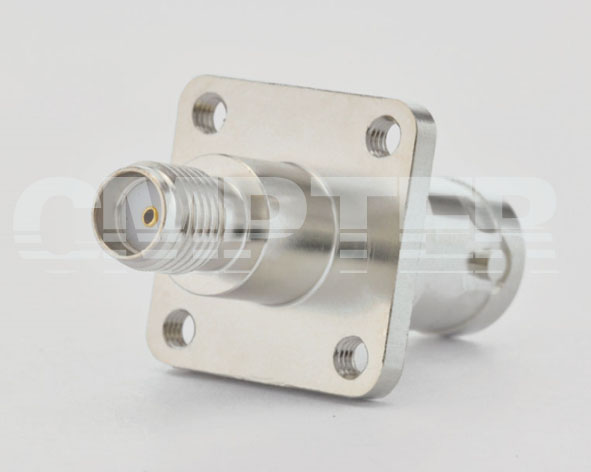

SMA to BNC female adapter

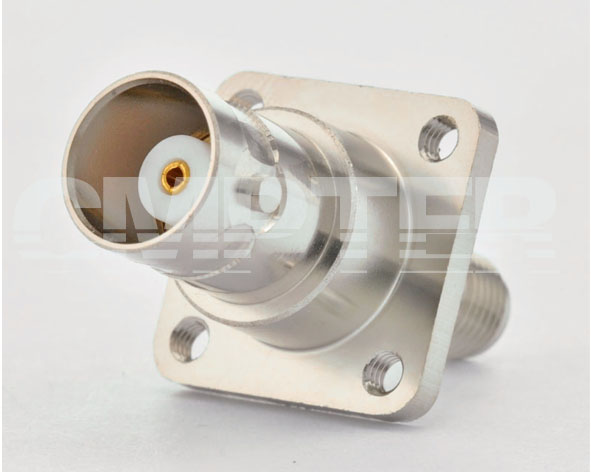

BNC to SMA 4 hole flange adapter
PRODUCT OVERVIEW
Interface Type: BNC to SMA
Gender: BNC female to SMA female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 22g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel Plated
    Insulator: PTFE
