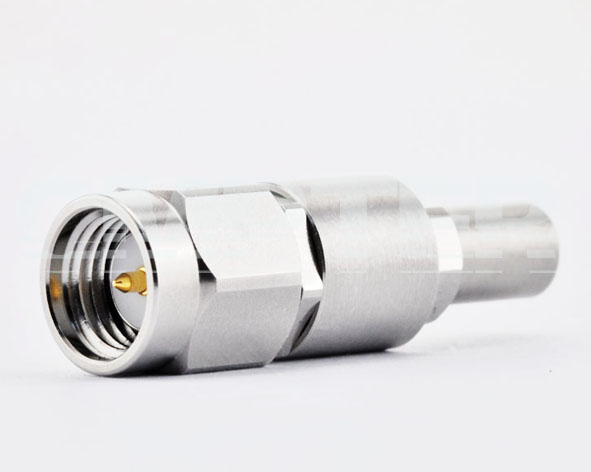

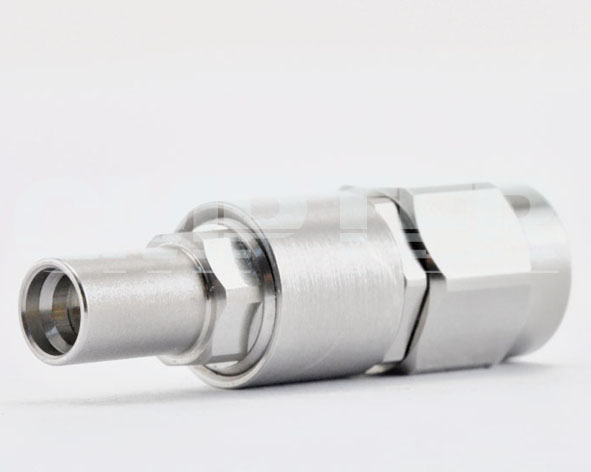

SMP Male to SMA Male Adapter, DC to 27GHz, VSWR ≤1.20

PN: P-SMAM-SMPM-428
SMA male to SMP male adapter
SMA to SMP adapter
PRODUCT OVERVIEW
Interface Type: SMA to SMP
Gender: SMP male to SMA male
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 27 GHz
VSWR 1.20:1
Temperature Range: -55 °C ~ +165 °C
Weight: 4g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI & PTFE
