RF Coaxial Adapters

1.85mm Male to 1.85mm Male Right Angle Precision Adapter

PN: PR-1.85M-1.85M-440

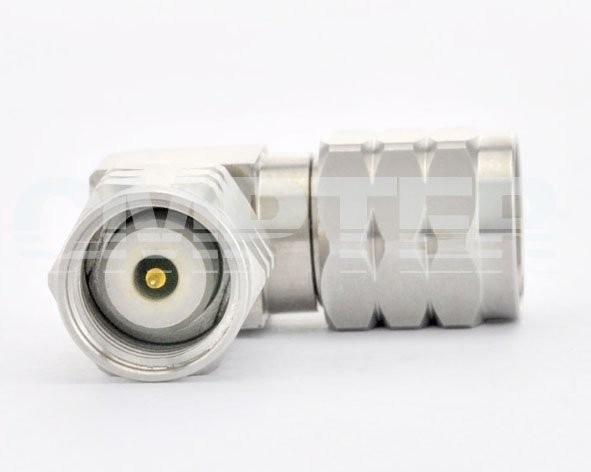

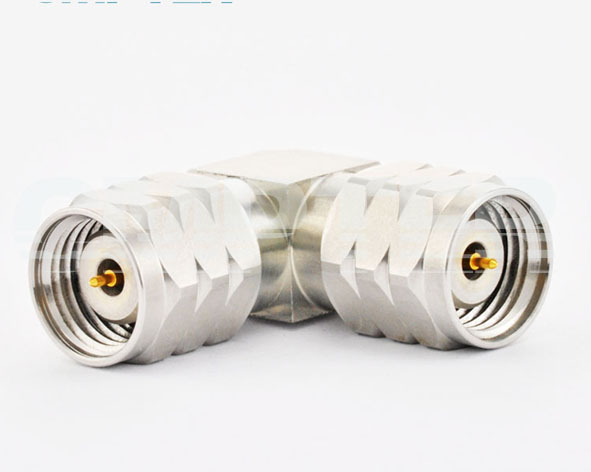

1.85mm male to male right angle adapter
1.85mm right angle adapter
PRODUCT OVERVIEW
Interface Type: 1.85mm male
Gender: 1.85mm male to 1.85mm male right angle adapter
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 67 GHz
    VSWR 1.35:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 10g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
